Power Distribution Units
PDUs allow for reliable and cost effective distribution, protection, monitoring, and management of power consumption to multiple devices in Data Center environments. Modac offers a full range of power distribution units, for everything from basic rack mount models used in distributed IT networks, to advanced models for comprehensive monitoring and management in enterprise and co-location Data Centres.

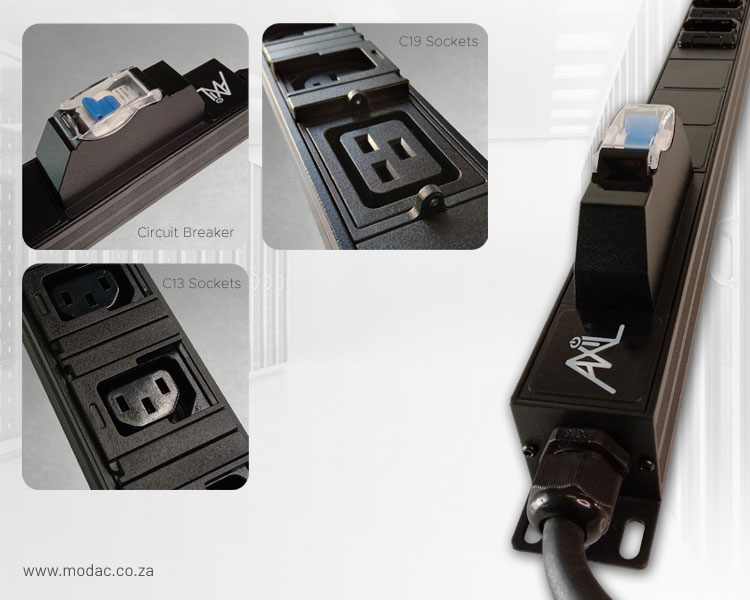

Full Cabinet PDU (Basic)
- Dimensions: 1360 x 45 x 45 mm
- Type: Vertical Mount
- Input Current: 32 Amps
- Input Cable: IEC 60309 Plug
- 20 x C13 (Locking)
- 4 x C19
Full Cabinet PDU (Metered)
- Dimensions: 1360 x 45 x 45 mm
- Type: Vertical Mount
- Input Current: 32 Amps
- Input Cable: IEC 60309 Plug
- 20 x C13 (Locking)
- 4 x C19
- Ammeter: Amps, Volts, kWh

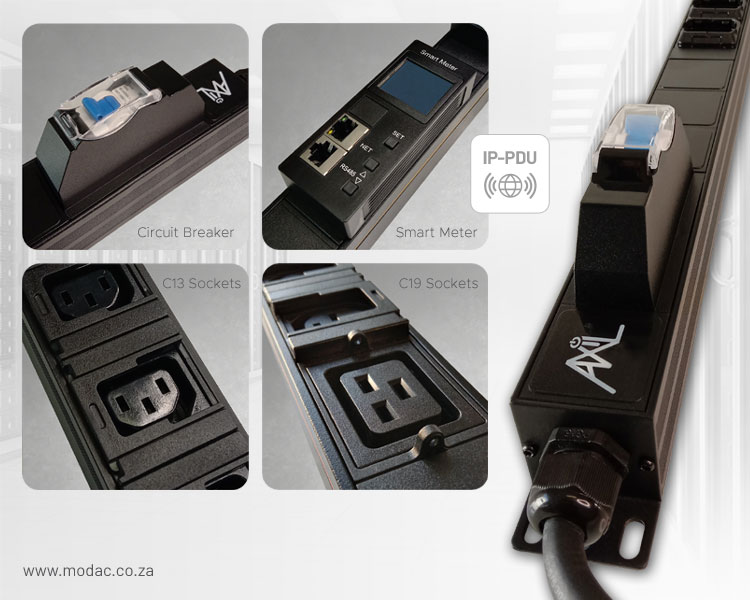

Full Cabinet PDU (Managed)
- Dimensions: 1360 x 45 x 45 mm
- Type: Vertical Mount
- Input Current: 32 Amps
- Input Cable: IEC 60309 Plug
- 20 x C13 (Locking)
- 4 x C19
- Ammeter: Amps, Volts, kWh
- Optional: Temp, Humidity
- IP-PDU Function
- Software: PDU View

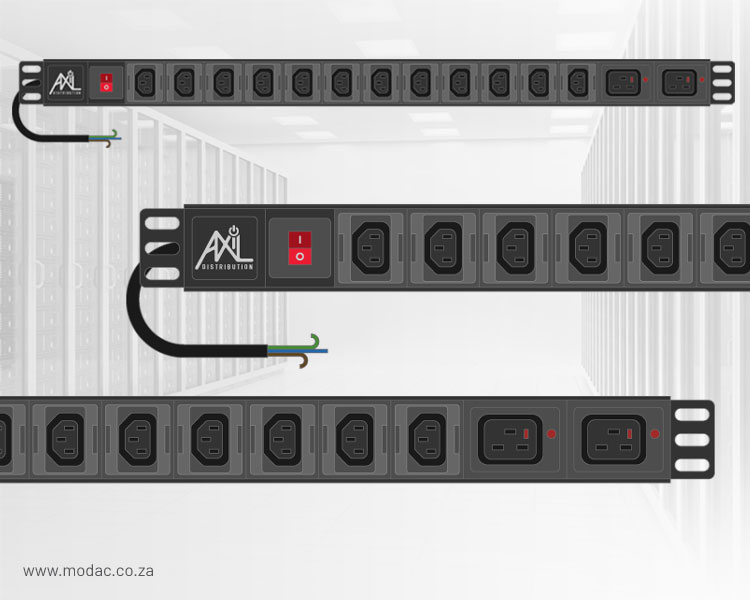

Axil Half Cabinet PDU
- Dimensions: 700 x 45 x 45 mm
- Type: Vertical Mount
- Input Current: 16 Amps
- Input Cable: 1.5 m (no plug)
- 12 x Lockable C13 sockets
- 2 x Locking C19 sockets

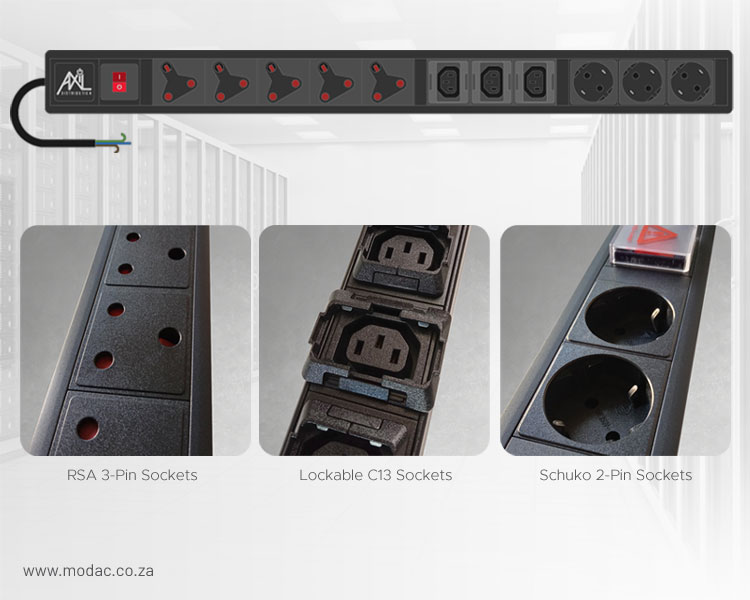

Axil 5-3-3 PDU
- Dimensions: 630 x 65 x 45 mm
- Type: Vertical Mount
- Input Current: 16 Amps
- Input Cable: 1.5 m (no plug)
- 5 x RSA 3-Pin (Type M)
- 3 x Lockable C13 sockets
- 3 x Schuko 2-Pin sockets

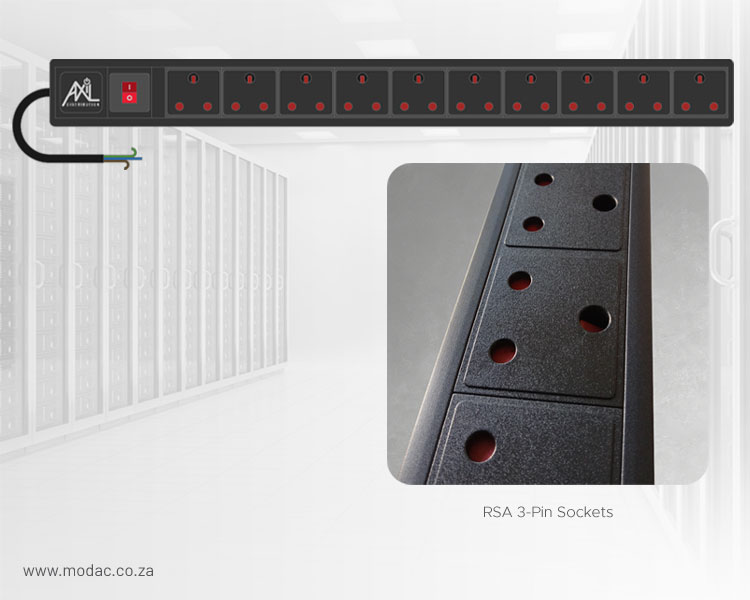

Axil 10-Way 3-Pin PDU
- Dimensions: 620 x 65 x 45 mm
- Type: Vertical Mount
- Input Current: 16 Amps
- Input Cable: 1.5 m (no plug)
- 10 x RSA 3-Pin (Type M)

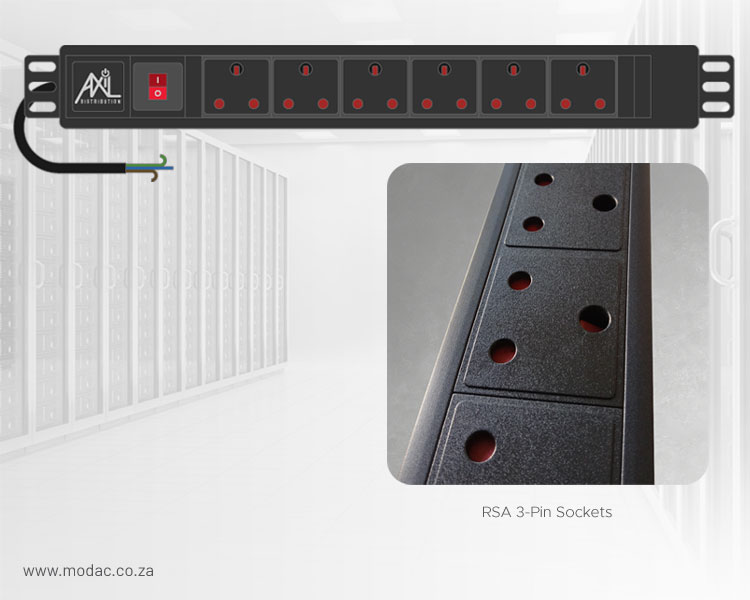

Axil 6-Way PDU
- Dimensions: 440 x 65 x 45 mm
- Type: Vertical Mount
- Input Current: 16 Amps
- Input Cable: 1.5 m (no plug)
- 6 x RSA 3-Pin (Type M)

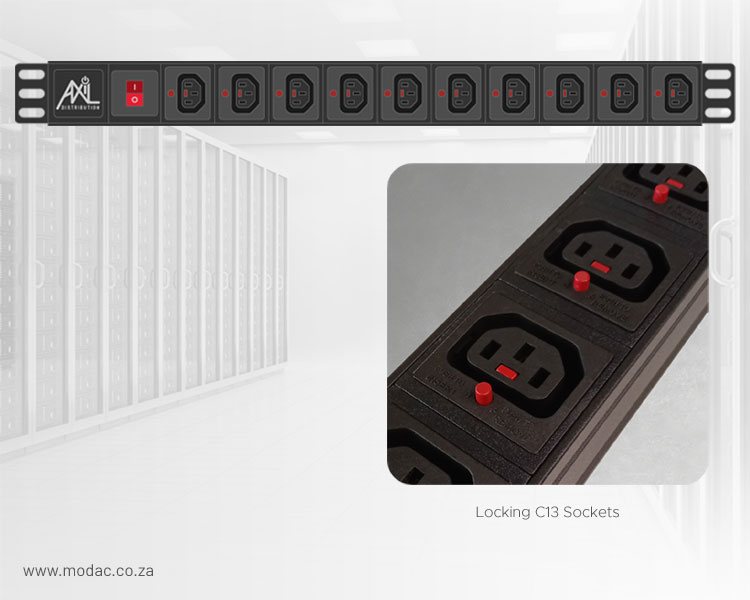

Axil 10-Way PDU
- Dimensions: 520 x 45 x 45 mm
- Type: Vertical Mount
- Input Current: 16 Amps
- Input Cable: No cable / No plug
- 10 x Locking C13 sockets

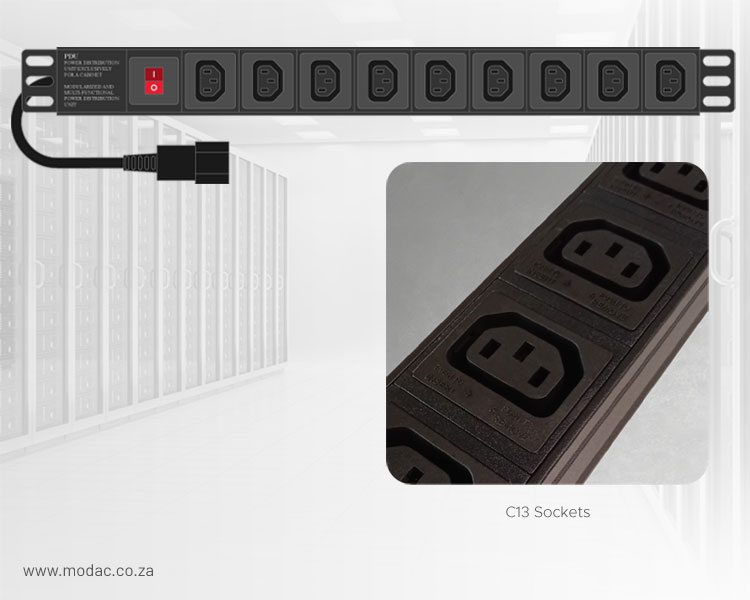

Axil 9-Way PDU
- Dimensions: 440 x 45 x 45 mm
- Type: Rack Mount
- Input Current: 10 Amps
- Input Cable: 1m cable with C14 plug
- 9 x C13 sockets

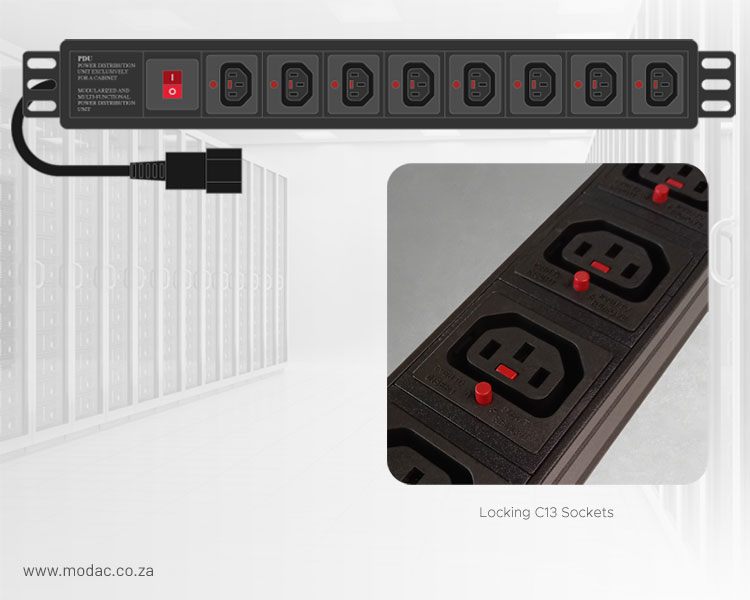

Axil 8-Way PDU
- Dimensions: 440 x 45 x 45 mm
- Type: Rack Mount
- Input Current: 10 Amps
- Input Cable: 1m cable with C14 plug (Available without cable or plug)
- 8 x Locking C13 sockets

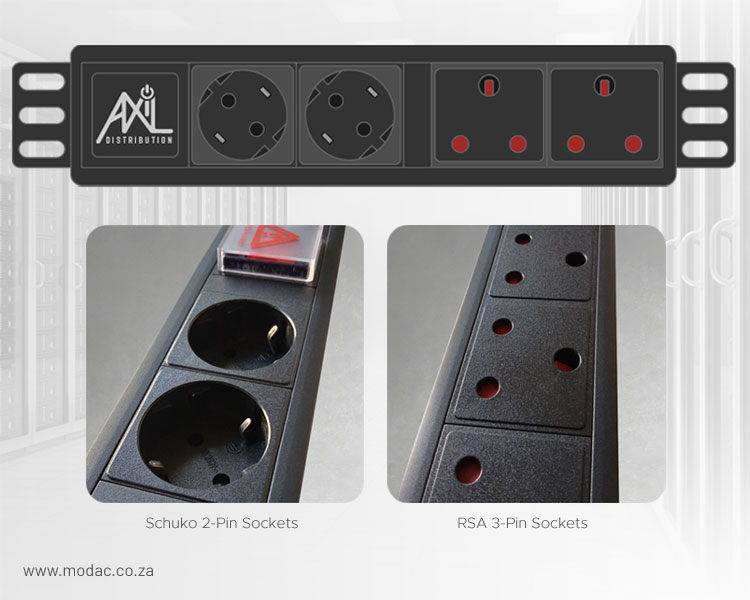

Axil Desktop PDU
- Dimensions: 255 x 65 x 45 mm
- Input Current: 16 Amps
- Input Cable: No cable / No plug
- 2 x Schuko 2-Pin sockets
- 2 x RSA 3-Pin (Type M)

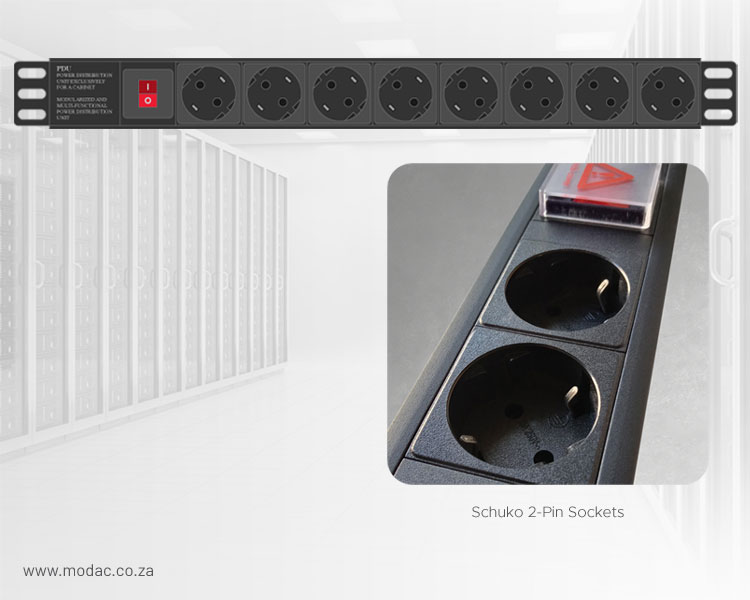

Axil 8-Way 2-Pin PDU
- Dimensions: 440 x 45 x 45 mm
- Type: Rack Mount
- Input Current: 10 Amps
- Input Cable: No cable / No plug
- 8 x Schuko 2-Pin sockets

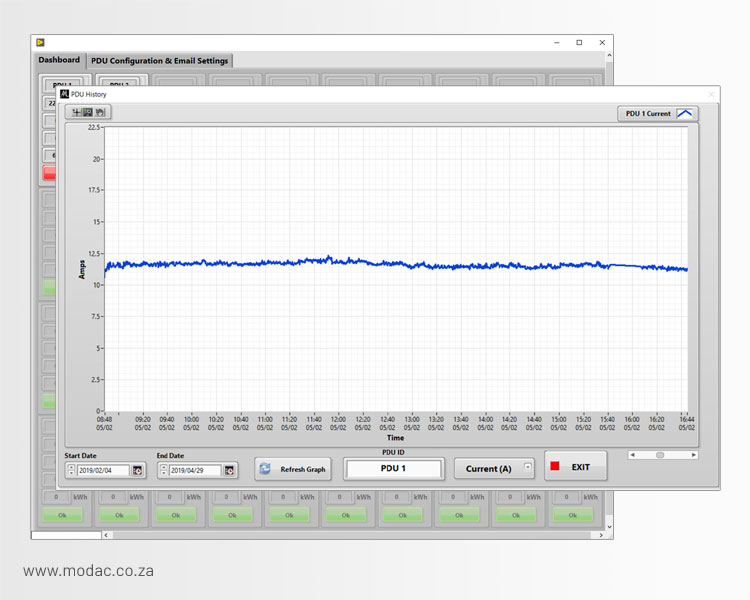

Axil PDU View Software
Complete Remote Power Management
Monitor all your rack PDUs, floor PDUs with a simple and intuitive web-based dashboard.
Learn moreDownload Brochure
Types of Power Distribution Units (PDUs)
Power Distribution Units (PDUs) are essential components for efficient power management in data centers, server rooms, and other critical IT infrastructure. PDUs distribute electrical power to multiple devices while monitoring and controlling power usage.
Basic PDUs
Basic PDUs are compact, reliable, and cost-effective solutions for distributing power to various devices such as server racks and IT equipment. Similar to a traditional power strip, a basic PDU provides a straightforward method of powering multiple devices without additional features. It's an ideal choice for users who need a simple, no-frills power distribution system for low- to mid-scale environments.
Metered PDUs
A metered PDU offers more advanced power management by tracking and displaying real-time power consumption data. These units are equipped with a digital LCD display that shows key power metrics, including voltage, current, and power factor. By providing visibility into energy usage, metered PDUs help optimize energy efficiency, reduce costs, and prevent overloading, making them perfect for businesses looking to monitor their power consumption at the device level.
Managed (Monitored) PDUs
Managed or monitored PDUs allow both local and remote monitoring of power usage for data centers and large IT environments, via network access using Axil PDU View. They provide detailed insights into power metrics such as current, voltage, real power, and kilowatt-hours, enabling IT managers to remotely track and manage power distribution, improve energy efficiency, and prevent potential failures. Managed PDUs are ideal for environments requiring real-time monitoring, troubleshooting, and remote access to power data.
